Granite Fire Apparatus

New England Dealer

Cloud Callout: I’ll only ride on a 4-GUYS fire truck!!!

Ford F550—Super Duty



6.4L Power Stroke Diesel



Hale AP 500 GPM

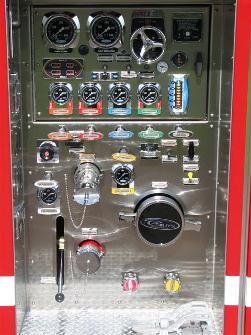

Side Mount Panel



250 Gallons water with 10 gallon integral foam tank



FoamPro 1600



9000lb Electric Winch—front and rear receivers

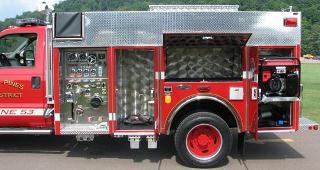

Upper compartments for ladder, suction and long handled tools

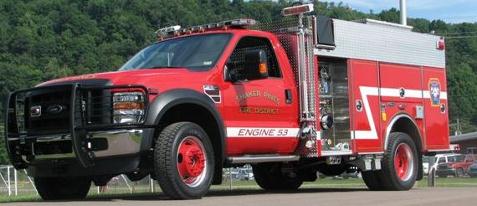

Shaker Pines Fire District #5, Enfield, Ct.—Engine 53

Chief Charles Macsata and Shaker Pines Fire District #5 in Enfield, Ct. recently delivery in August of 2009 of this Ford F550 Super Duty chassis with a custom 4-Guys Stainless Steel body.  Engine 53 will be used as a rescue, utility and brush unit.  It features a Hale AP 500 GPM PTO fire pump, 250 gallons of water, a FoamPro 1600 system with a 10 gallon integral foam tank, a 3500 watt portable gasoline generator, 9000 lb. Warn winch with receivers front and rear.  Upper compartments house a 16’ extension ladder, 2 sections of suction hose and space for long handled tools and brush equipment.  The rear mounted reel is not connected to the pump, but carries 1000’ of dry forestry hose.  There are two 1 3/4” crosslays, two 2 1/2” discharges on the pump panels, one 2 1/2” in the left front hosebed, one 2 1/2 on the right rear face and a 4” rear suction.

The all stainless body and sub frame carry 4-GUYS “Best in the industry” 20 year warranty.  The paint carries a 10 year warranty and the entire vehicle is covered by  “Sole Source Warranty Coverage” provided by Granite Fire Apparatus, Inc.
